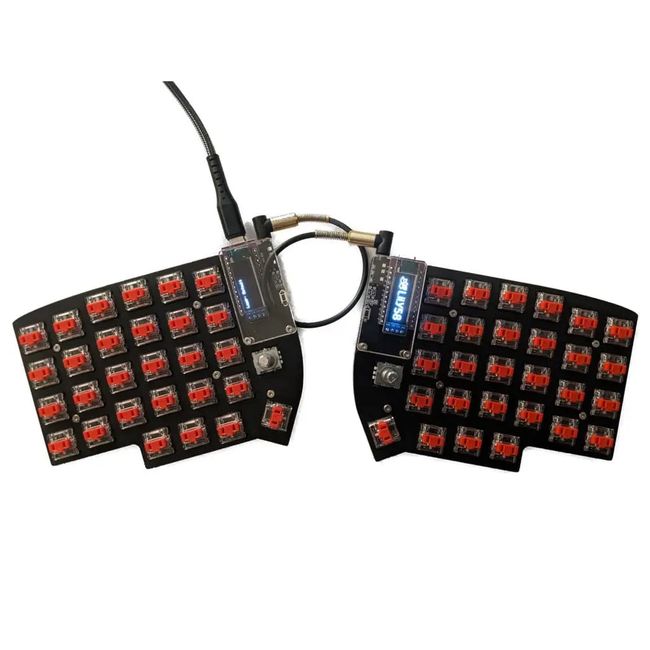

Lily58 Pro Keyboard Kit

The Lily58 Pro/Pro RE keyboard is a 6×4+4keys column-staggered split keyboard.
Pro = MX/Choc Switch Support

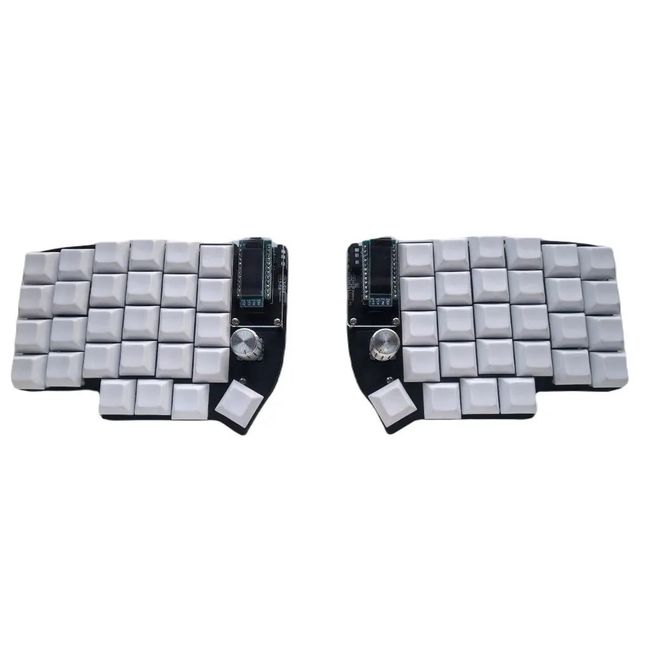

Pro RE = Rotary Encoder Support

Precompiled firmware can be found here.

Kit Includes

2 x Lily58 Pro OR Pro RE PCBs

2 x Lily58 Pro FR4 Switch Plates

2 x Acrylic Bottom Plates

2 x Acrylic OLED Covers

1 x TRS Cable

2 x TRRS Jacks

2 x 3x6 Tactile Switches

2 x OLED Displays

4 x 10mm Brass Standoffs

10 x 7mm Brass Standoffs (MX Normal Profile) OR 5mm Brass Standoffs (Choc Low Profile)

58 x Kailh Hotswap Sockets (MX Normal Profile) OR Choc Low Profile Sockets (Choc Low Profile)

58 x Diodes (SMD)

28 x Screws

8 x Rubber Feet

Required to Complete

2 x Pro Micro Controllers (Headers to Direct Attach)

56 x Switches

56 x Keycaps

Optional Items

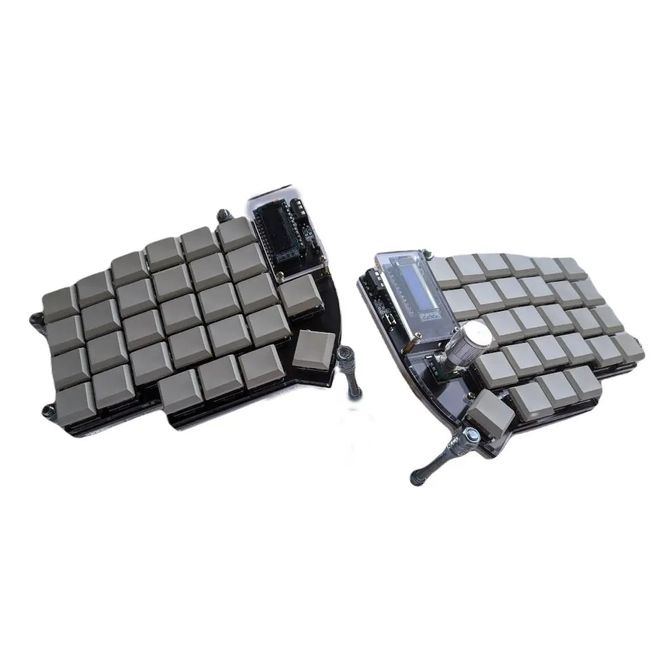

1 x Lily58 Pro Tenting Case Kit

1-2 x EC11 Encoders

1-2 x Encoder Knobs

2 x EZ-Solder Headers (Enable Controller Hot Swap)
2 x 4Pin Header Socket (Enable Display Hot Swap)

Build Instructions

Lily58 Pro Build Guide

This keyboard is designed originally by Naoki Katahira and modified to create the Pro RE by Ergohaven
